3D V-Bending Welded Wire Mesh Fence Panels

Durable 3D V-bending welded mesh fence panels designed for construction sites, residential areas, gardens, highways, railways, and industrial security. Made from high-quality steel with hot-dip galvanizing or PVC powder coating for long-lasting corrosion resistance.

Product Overview

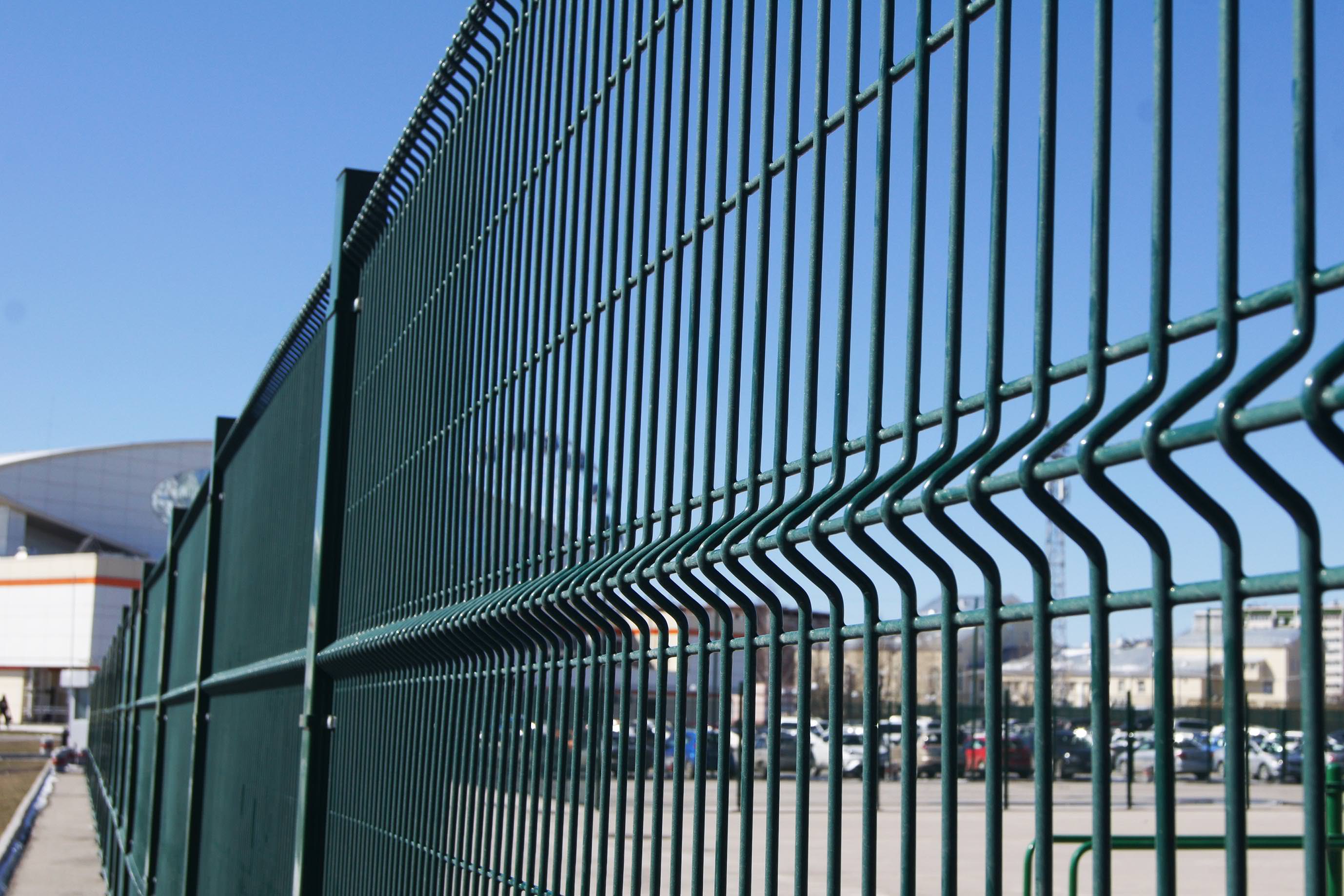

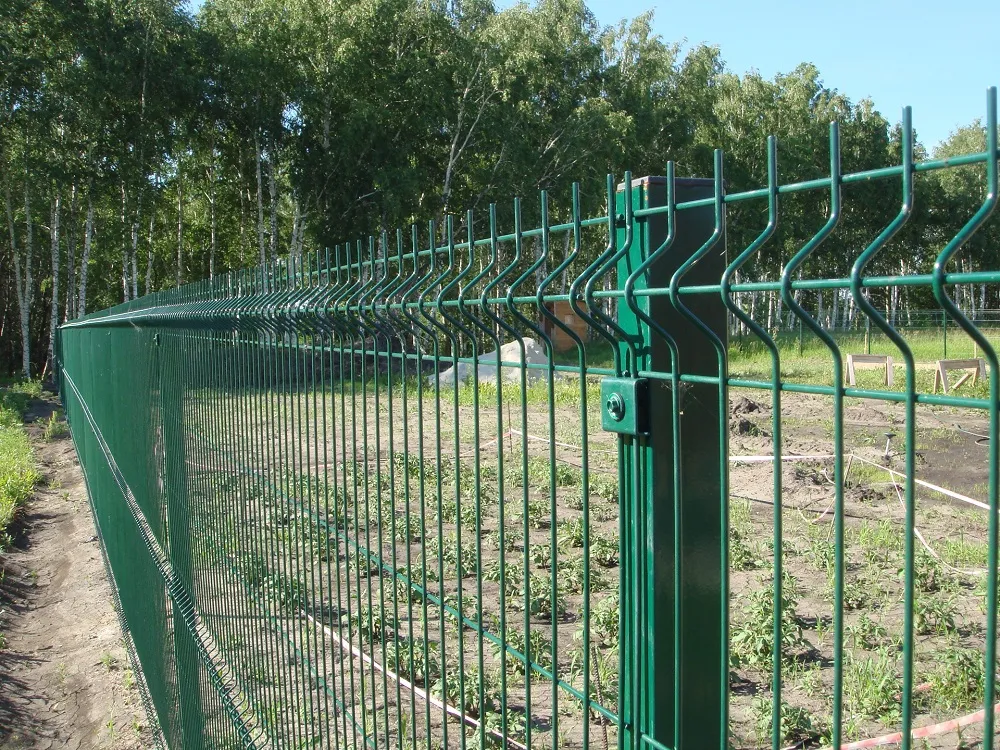

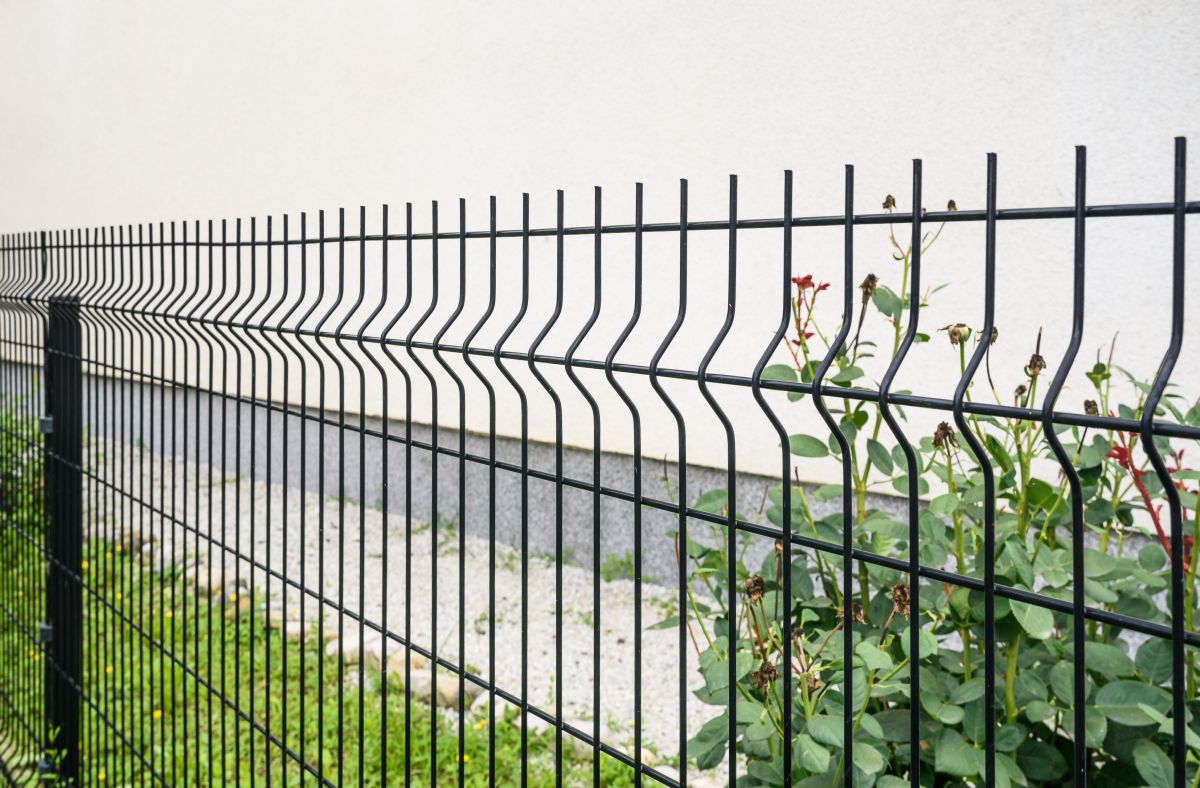

The 3D V-Bending Welded Wire Mesh Fence, also known as a curved fence or triangle mesh fence, is a lightweight yet highly durable fencing system widely used in residential areas, construction sites, gardens, sports fields, industrial facilities, highways, airports, and railway stations. Its unique V-bending structure increases panel strength while maintaining a clean and open modern appearance.

Available in hot-dip galvanized, galvanized + powder coated, and galvanized + PVC coated finishes, the panels offer excellent corrosion resistance with an outdoor service life of 5–10 years.

Key Features

• Strong Anti-Corrosion Performance: Hot-dip galvanizing and powder coating protect against rust and extend longevity.
• Fast & Easy Installation: Only two workers are needed to complete installation efficiently.
• Modern Clean Appearance: Smooth mesh surface with excellent visibility provides a bright and spacious look.
• Highly Customizable: Multiple mesh openings, wire diameters, post types, and RAL colors available.

Applications

• Residential boundary protection
• Construction site security fencing
• Garden and farmland protection
• Airport and highway service area fencing
• Railway station perimeter fencing
• School and sports field fencing

Specifications

Mesh Opening

• 50×100mm
• 50×150mm
• 50×200mm
• 55×200mm
• 75×150mm

Wire Diameter

• 3.0mm / 3.5mm / 4.0mm / 4.5mm / 5.0mm

Panel Height

• 0.6m – 3.0m (Recommended: 2.0m / 2.4m / 3.0m)

Panel Width

• 2.0m – 3.0m (Recommended: 2.0m / 2.5m / 2.9m)

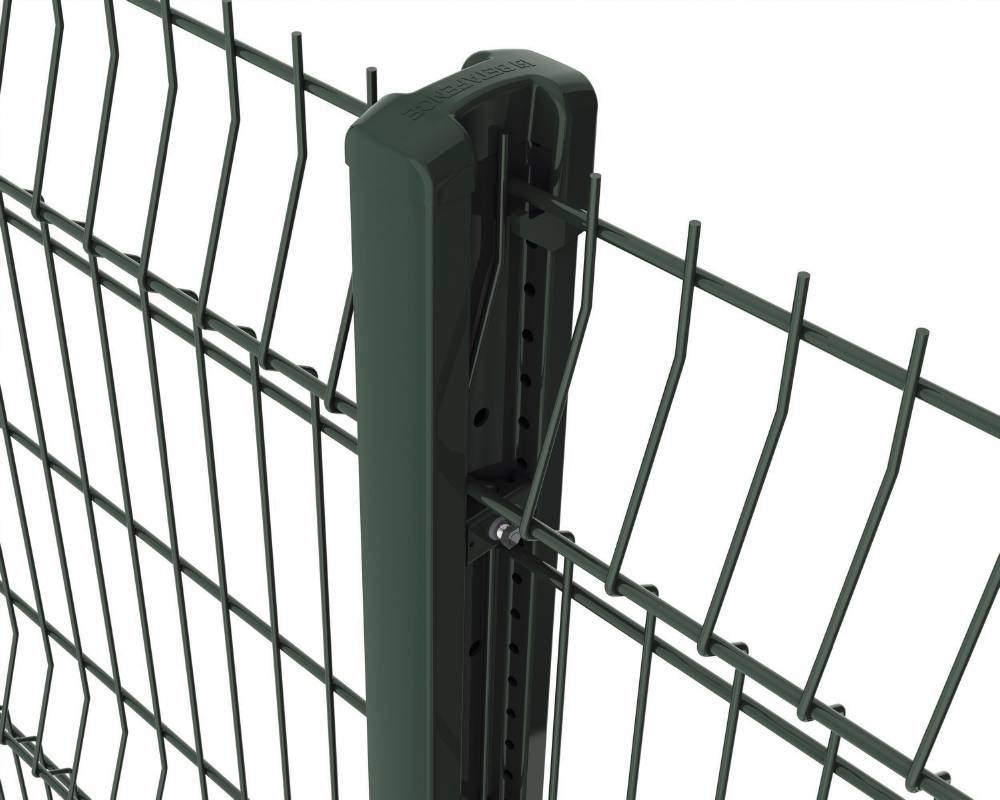

Post Options

Round Post:

• 48×1.5/2.0mm
• 60×1.5/2.0mm

Square Post (SHS):

• 50×50×1.5/2.0mm
• 60×60×1.5/2.0mm
• 80×80×1.5/2.0mm

Rectangular Post (RHS):

• 40×60×1.5/2.0mm
• 40×80×1.5/2.0mm
• 60×80×1.5/2.0mm
• 80×100×1.5/2.0mm

Surface Treatment

• Hot-dipped galvanized
• Galvanized + powder coated
• Galvanized + PVC coated

Color Options

• RAL 6005 Green
• RAL 7016 Grey
• All RAL colors customizable

Panel Folding (V-Bend)
